VMax Permanent Turf Reinforcement Mats

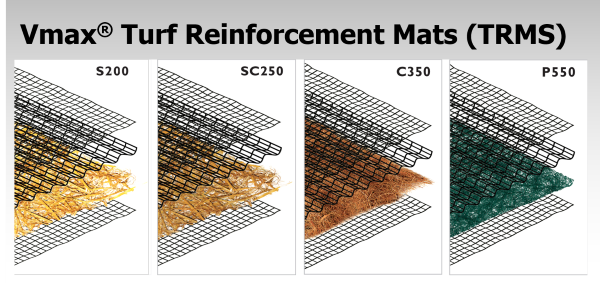

VMax Permanent C-TRM products include:

• VMax® S200® Permanent TRM

• The VMax S200 TRM has a 100% straw fiber matrix to enhance initial mulching and erosion control performance. Unvegetated, it reduces soil loss under shear stress up to 2.3 psf (110 Pa) and increases permanent vegetation performance up to 10 psf (480 Pa).

• VMax® SC250® Permanent TRM

The VMax SC250 TRM has a 70% straw/30% coconut fiber matrix to enhance initial mulching and erosion control performance. Unvegetated, it reduces soil loss under shear stress up to 3.0 psf (144 Pa) and increases permanent vegetation performance up to 10 psf (480 Pa).

• VMax® C350® Permanent TRM

A 100% coconut fiber matrix supplements the VMax C350 TRM’s permanent three-dimensional netting structure. Unvegetated, it reduces soil loss under shear stress up to 3.2 psf (153 Pa) and boosts permanent vegetation performance up to 12 psf (576 Pa).

•   VMax® P550® Permanent TRM

Our P550 TRM has a polypropylene fiber matrix augmenting the permanent netting structure. Unvegetated, the VMax P550 TRM reduces soil loss under shear stress up to 4.0 psf (191 Pa). The ultra-strong structure drives the vegetated shear resistance up to 14 psf (672 Pa).

VMax Permanent HP-TRM products include:

• VMax® W3000® High-Performance TRM

The VMax W3000 TRM is the only multi-layered, UV-stabilized woven permanent product with mat strata providing zones for both root and stem vegetation reinforcement. It is designed to provide increased tensile strength up to 3800 lbs/ft, thickness and optimum open area for effective erosion and vegetation reinforcement against high-flow induced shear forces.

• TMax™ High-Performance TRM

The TMax HPTRM is woven especially for use with soil and seed infilled. This lighter-weight woven option is suited for difficult applications needing increased tensile and longevity. Once vegetated the TMax can handle permissible shears greater than 15 pfs
